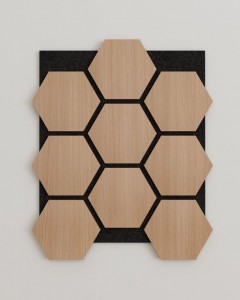

acoustic panels with MDF backed
more designs available please contact
-

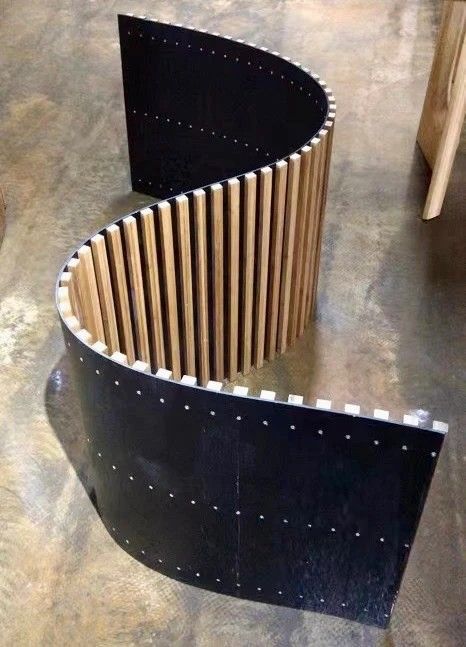

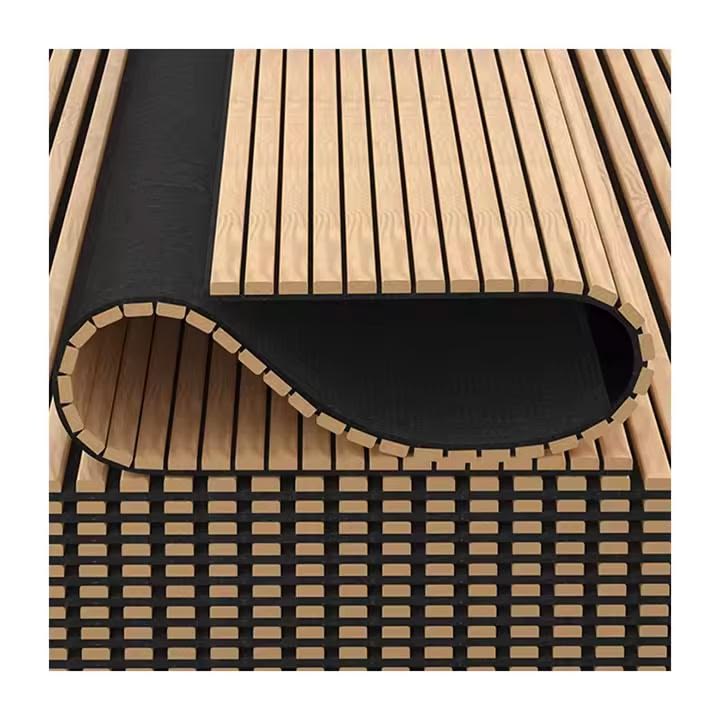

Soft felt bendable slat akupanels
2400/2700/3000*600mm
optional backboard colors
customization supported
-
Round ceiling designs
400/600/800/1200MM DIA
THICKNESS
9/12/24MM
-
Acoustic linar buffles – ceilings and lights
L 1200MM
W50MM
H 150MM
MORE OPTIONAL SIZE AVAILABLE
-
Acoustic ceiling U channel
Acoustic U channel
2400mm*100*200mm ,with light available
perfect for project ceiling
customized size available
-
wood veneer coated series
Veneer coated
layer Wood veneer or laminate
back board high density black PET panels
-
Triangle acoustic light design
ACOUSTIC LIGHT PANEL
Triangle design
Product Overview
The Acoustic Light Panel is an innovative architectural solution that integrates high-performance sound absorption with modern LED lighting. Designed to enhance both acoustic comfort and visual appeal, it is ideal for commercial and public interior environments.
Manufactured from premium polyester fiber acoustic material, the panel effectively reduces echo and reverberation while delivering soft, uniform illumination. Its modular and lightweight design allows flexible installation across various applications.
Key Features
- Dual functionality: sound absorption and lighting
- High-density polyester fiber acoustic core
- Excellent noise reduction and echo control
- Integrated energy-efficient LED lighting system
- Lightweight and easy to install
- Customizable shapes, sizes, and colors
- Eco-friendly material (up to 75% recycled content available)
Technical Specifications
Material: Polyester Fiber Acoustic Panel
Lighting Type: Integrated LED
Acoustic Performance: NRC up to 0.75 – 0.90 (depending on thickness/design)
Dimensions: Custom sizes available
Color Options: Wide range of standard and custom colors
Mounting Options: Suspended / Ceiling Mounted / Wall Mounted
Fire Rating: Optional (subject to specification)
Applications
- Open-plan offices
- Meeting and conference rooms
- Educational facilities
- Restaurants and cafes
- Hospitality and retail spaces
- Public buildings and commercial interiors
-
Acoustic light gallery
ASME ACOUSTICS
PRODUCT DATASHEET
ACOUSTIC LIGHT PANEL
Product Overview
The Acoustic Light Panel is an innovative architectural solution that integrates high-performance sound absorption with modern LED lighting. Designed to enhance both acoustic comfort and visual appeal, it is ideal for commercial and public interior environments.
Manufactured from premium polyester fiber acoustic material, the panel effectively reduces echo and reverberation while delivering soft, uniform illumination. Its modular and lightweight design allows flexible installation across various applications.
Key Features
- Dual functionality: sound absorption and lighting
- High-density polyester fiber acoustic core
- Excellent noise reduction and echo control
- Integrated energy-efficient LED lighting system
- Lightweight and easy to install
- Customizable shapes, sizes, and colors
- Eco-friendly material (up to 75% recycled content available)
Technical Specifications
Material: Polyester Fiber Acoustic Panel
Lighting Type: Integrated LED
Acoustic Performance: NRC up to 0.75 – 0.90 (depending on thickness/design)
Thickness: 9mm / 12mm / 24mm (customizable)
Dimensions: Custom sizes available
Color Options: Wide range of standard and custom colors
Mounting Options: Suspended / Ceiling Mounted / Wall Mounted
Fire Rating: Optional (subject to specification)
Applications
- Open-plan offices
- Meeting and conference rooms
- Educational facilities
- Restaurants and cafes
- Hospitality and retail spaces
- Public buildings and commercial interiors
Installation
The Acoustic Light Panel is designed for easy installation using standard suspension systems or direct mounting methods. Detailed installation guidelines are available upon request.
Sustainability
- Manufactured using environmentally friendly processes
- Contains recycled material (up to 75%)
- Low VOC emissions
Customization
We offer full customization to meet project-specific requirements:
- Shapes and patterns
- Integrated lighting design
- Color matching
- Branding or logo integration
Contact Information
ASME ACOUSTICS
For inquiries, technical support, or project consultation, please contact our sales team.
-
Acoustic light -pinned designs collection
ASME ACOUSTICS
Product Datasheet
ACOUSTIC PENDANT LIGHT SYSTEM
Decorative Sound-Absorbing Lighting Solution
PRODUCT OVERVIEW
The Acoustic Pendant Light System is a modern, multi-functional interior solution that integrates sound absorption with decorative lighting. Designed using high-density polyester fiber acoustic panels, each pendant combines aesthetic elegance with acoustic efficiency.
The sculptural, layered form enhances both visual appeal and sound performance, making it ideal for contemporary commercial and hospitality spaces.
KEY FEATURES
Acoustic Performance
Reduces echo and reverberation, improving speech clarity and overall acoustic comfort.Integrated Lighting
Provides soft, ambient illumination with low glare, suitable for a variety of interior environments.Modern Design
Unique ribbed, petal-like geometry creates a striking architectural feature.Sustainable Material
Manufactured from environmentally friendly polyester fiber, with recycled content options available.Flexible Installation
Adjustable suspension cables allow for custom heights and dynamic clustered arrangements.Color Options
Available in a range of warm and neutral tones including terracotta, mustard, olive green, beige, and burnt orange.
TECHNICAL SPECIFICATIONS
Parameter Specification Material Polyester Fiber Acoustic Panel Density 1800–2400 g/m² Thickness 9mm / 12mm (customizable) Acoustic Rating NRC up to 0.75 (depending on configuration) Light Source LED Module Color Temperature 3000K / 4000K / 6000K Suspension Adjustable cable system Fire Rating B-s1, d0 (EN13501-1) Installation Ceiling suspended
APPLICATIONS
- Open Plan Offices
- Meeting & Conference Rooms
- Hotel Lobbies
- Restaurants & Cafés
- Educational Facilities
- Co-working Spaces
DESIGN ADVANTAGE
The Acoustic Pendant Light System merges three essential interior elements:
- Acoustics – Enhances sound quality and reduces noise
- Lighting – Provides comfortable ambient illumination
- Aesthetics – Acts as a modern decorative feature
This integration reduces the need for separate acoustic panels and lighting fixtures, optimizing both cost and design efficiency.
CUSTOMIZATION OPTIONS
- Custom sizes and shapes
- Wide color selection
- Cluster configurations
- Branding or logo integration
-
3D acoustics- wave panels
Product name: Polyester wave panels
Raw material: 100%polyester
Size: 2700mm*1000mm*21mm
Weight: 6.5kg
NRC rate: 0.85- 0.9
Fire resistant level: B1 (SGS EN13823-2018)
Recycle rate :70%
-
Polyester insulation
1*10m*50mm/25mm thickness
available in B1 flame retardant
2000gsm
